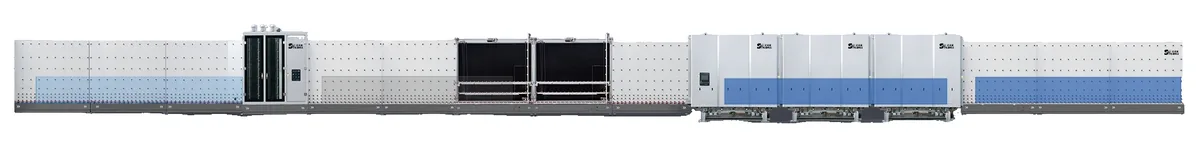

Super Large Insulating Glass Production Line
A customizable automated line for jumbo, ultra-thick and gas-filled insulating glass.
Performance Features
- Full PLC control with touch-screen HMI
- Online and offline Low-E glass washing
- Automatic air-knife adjustment according to glass thickness
- Digitally controlled energy-saving intermittent operation
- Variable-frequency brush-speed control for Low-E glass
- Ball-screw servo precision pressing
- Three-/four-side offset glass gas filling
- Custom openable washing and load-bearing conveying for ultra-thick glass
Technical Parameters
| Maximum glass size | 3300 × 12000 mm |
| Minimum glass size | 300 × 450 mm |
| Washable glass thickness | 3-35 mm |
| IG thickness | 10-80 mm; 10-100 mm optional |
| Washing speed | 0-10 m/min |
| Conveying speed | 45 m/min |
| Power supply | 3P 380V / 1P+N 220V, 50Hz, 38 kW |
| Compressed air | 0.8 m³/min at 0.7 MPa |
| Water conductivity | ≤30 μS/cm |
Optional Functions & Configurations
- Remote communication
- Customized production line for ultra-thick glass
- 2500, 2700, 3000 and 3300 series up to 12000 mm
